910 Airguns FX Dynamic Block Valve Housing Tool
$14.99
910 Airguns FX Dynamic Block Valve Housing Tool
910 Airguns FX Dynamic Block Valve Housing Tool

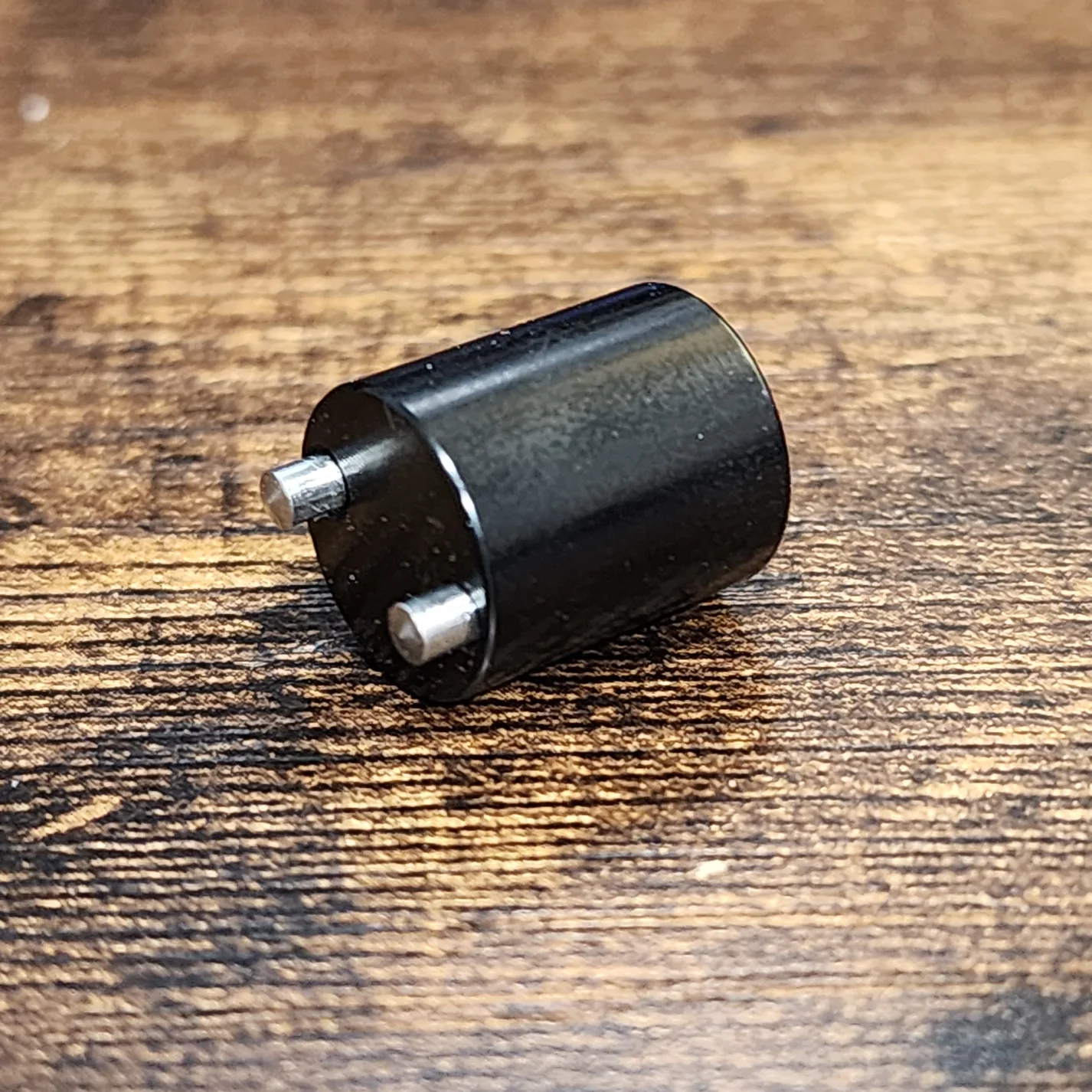

The FX Dynamic Block Valve Housing Tool is a less commonly needed tool, but very useful when it is! It is nearly indestructible and made for a single purpose: to remove the Valve Housing on an FX Dynamic Block based rifle, such as the FX Panthera. Typically, the plug requires a pin spanner wrench to remove - however, it can be difficult to use one here due to the plenum connection, and everyone wants to avoid putting scratches on an expensive gun. This tool converts the pin spanner tool to a 4mm Hex (the 4mm Hex is already used to remove the chassis support block off of the FX Panthera to gain access to the valve housing).
This tool is only used to remove/install the valve housing on the FX Dynamic Block - it does not fit any other known spanner holes. The valve housing will need to be removed to access the valve of the FX Dynamic Block for adjustments or repairs.
All parts of the tool are high precision CNC machined.

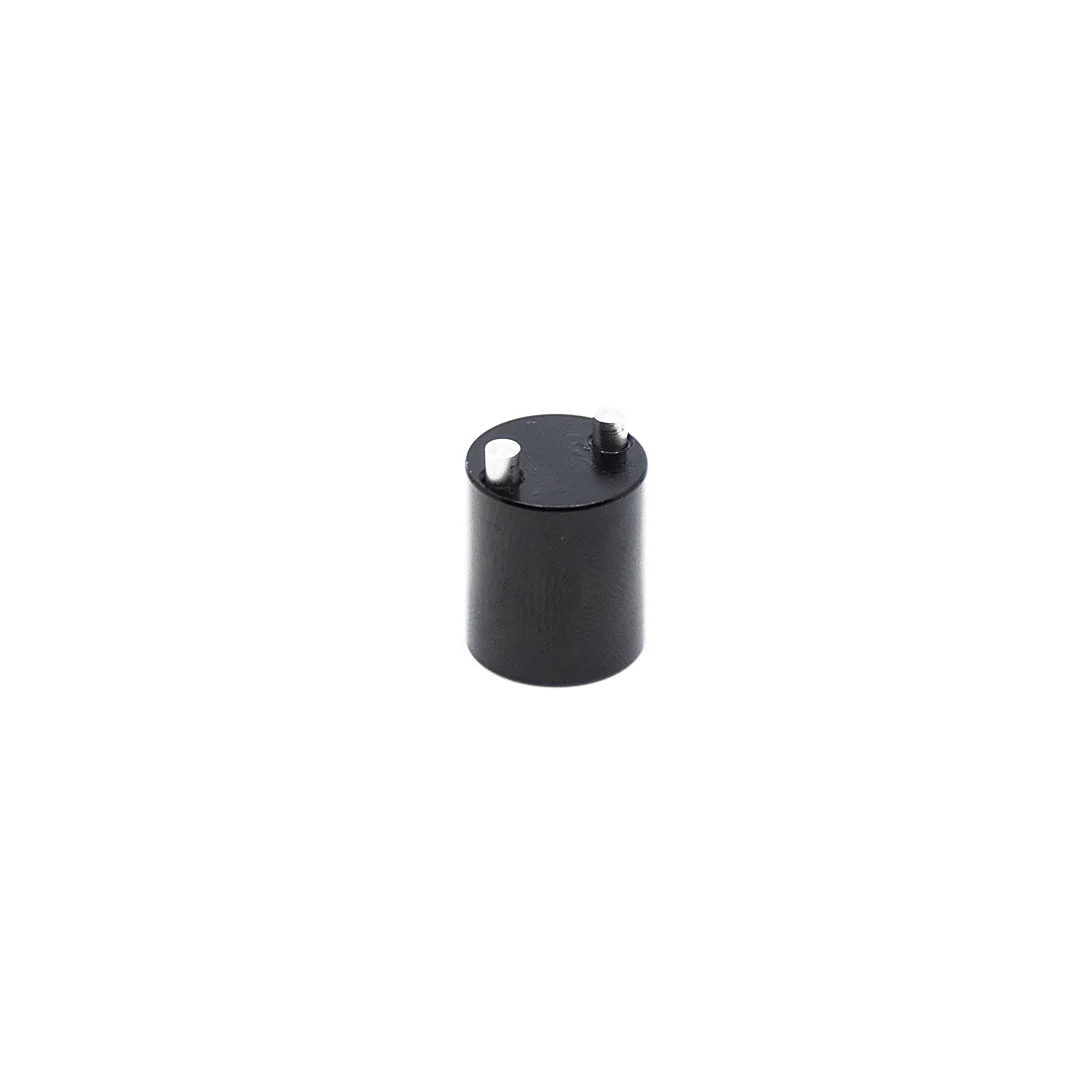

The tool is high quality 7075-T6 Aluminum anodized black. The pins are special made, 304 Stainless Steel threaded pins, designed to thread into the tool and secured with Loctite Blue 243, so the pins will never come out unless heated and purposely removed.

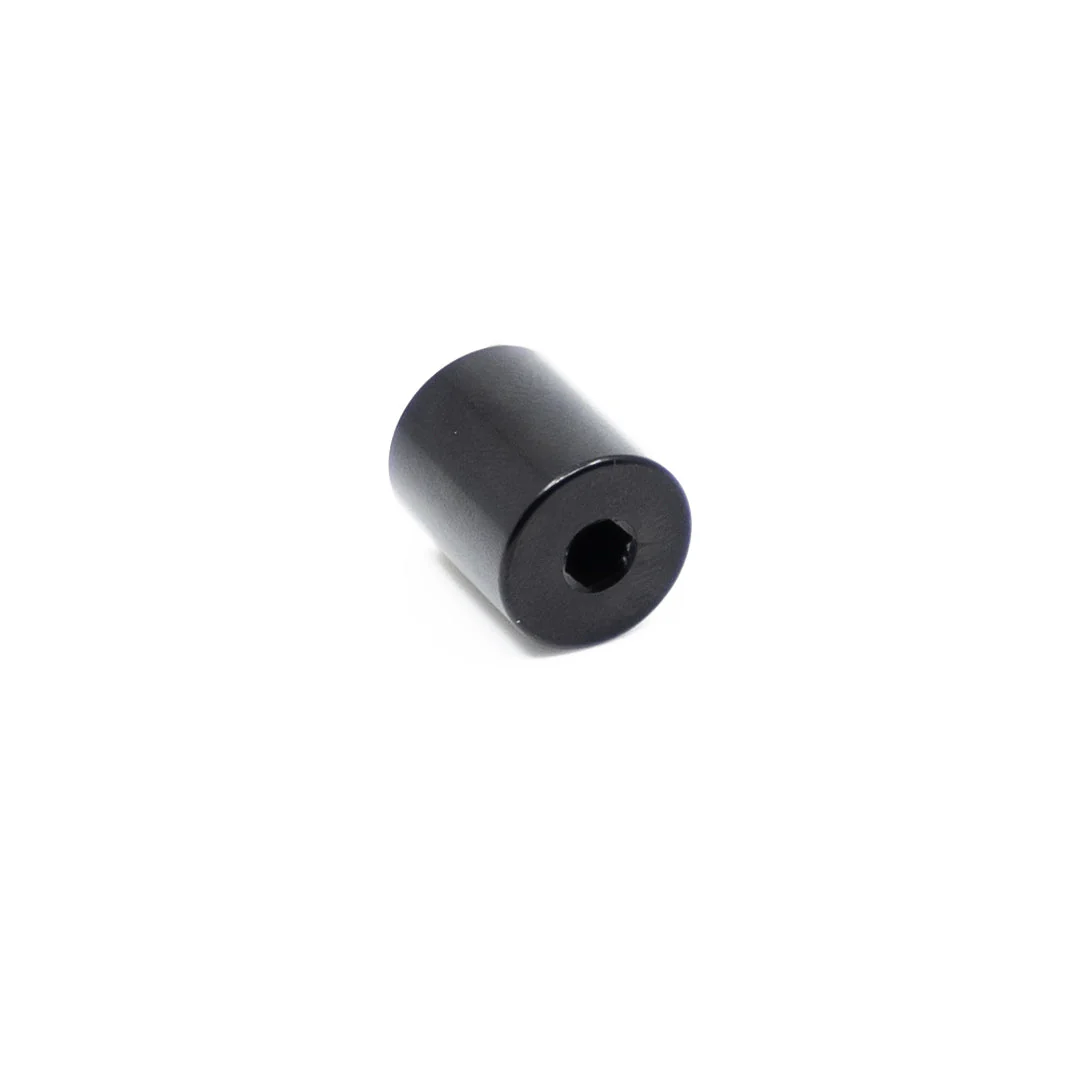

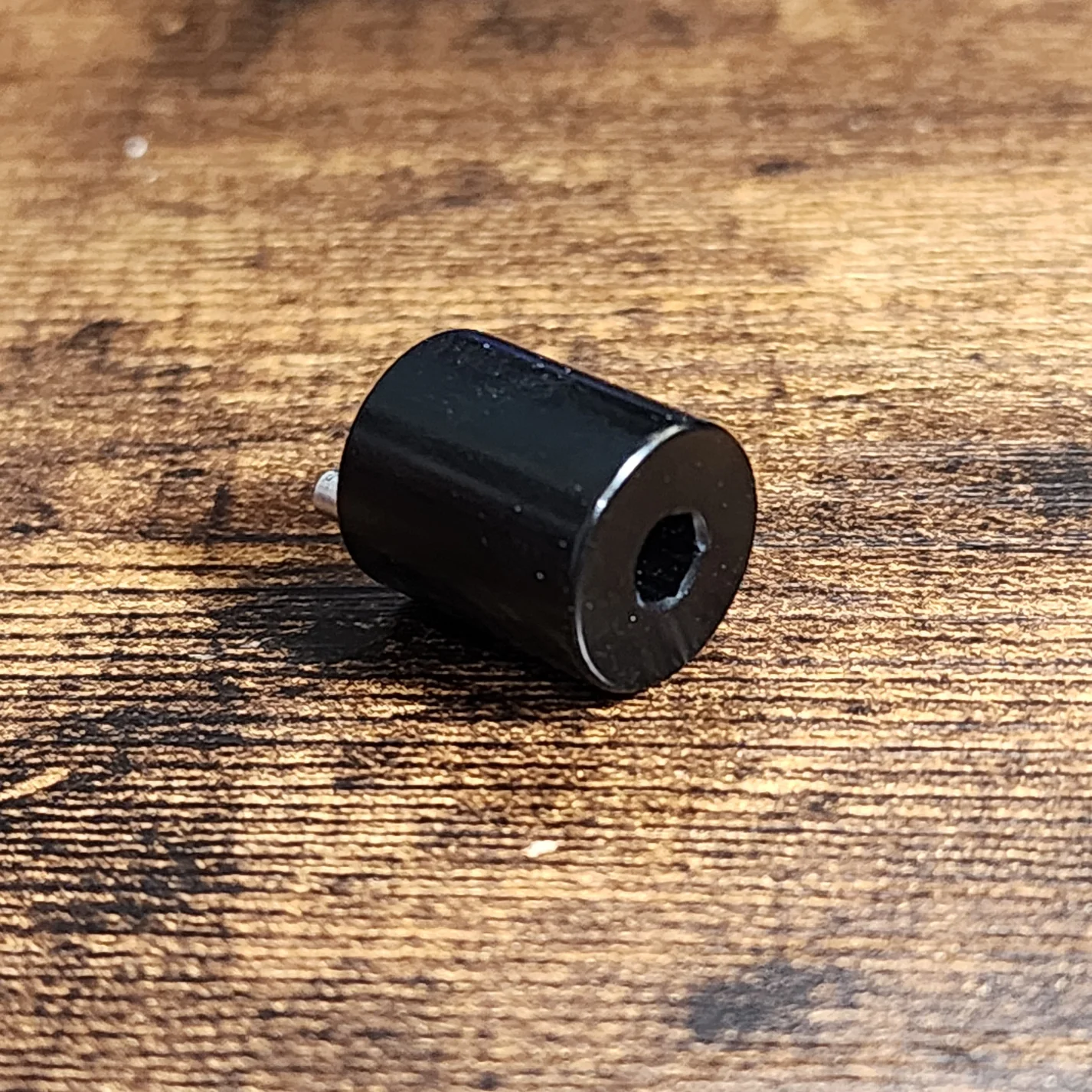

Hex slot is 4mm.
**NOTE** - The pins are a very tight fit into the valve housing, so be sure they are fully seated before attempting to turn, or else the pin holes in the housing may be damaged.
Also, please check with your local distributor before use, as disassembly of the rifle may void your warranty.
