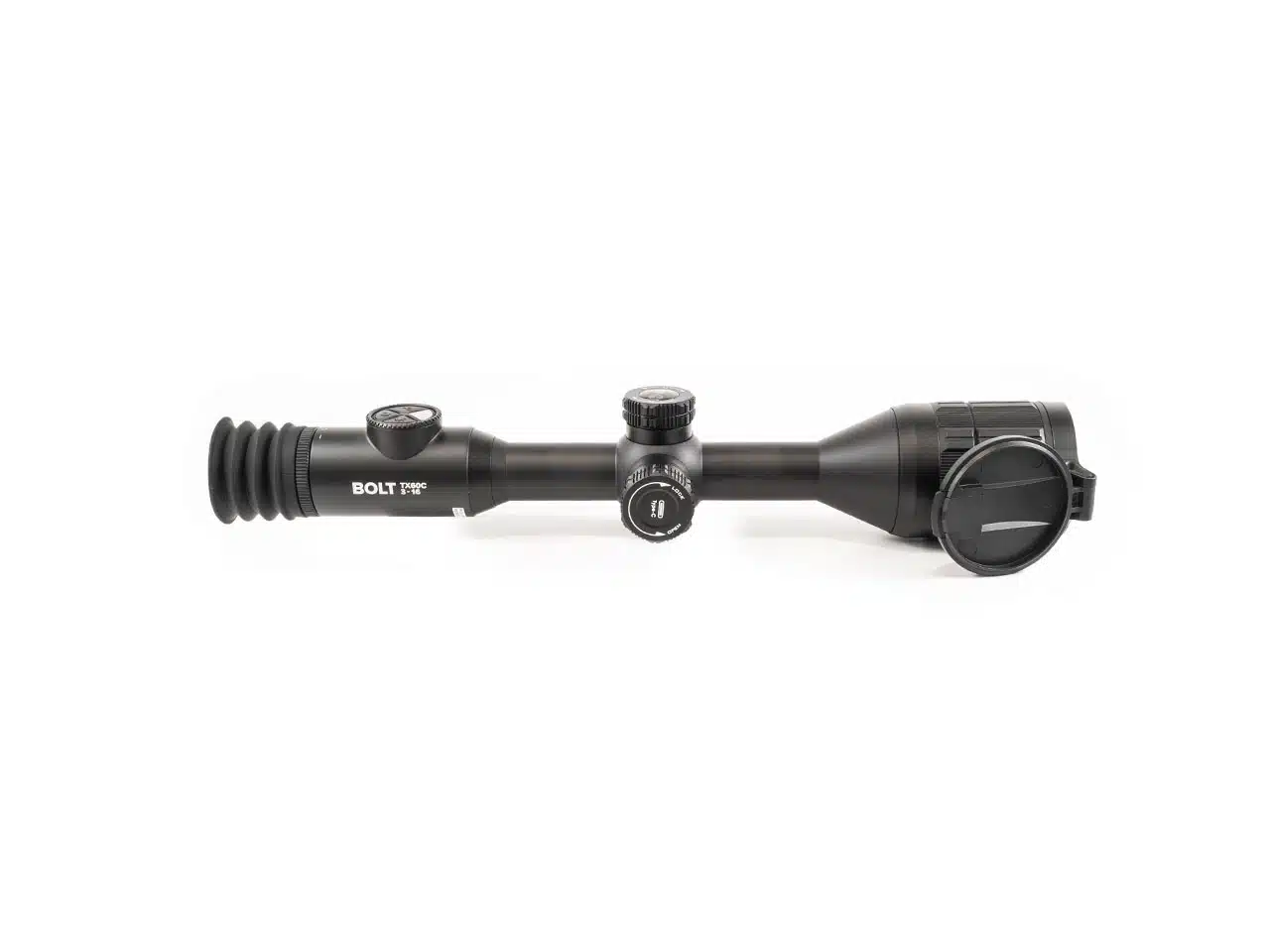

InfiRay Outdoor BOLT TX60C Rifle Scope

1024x1024 60mm Thermal Weapon Sight

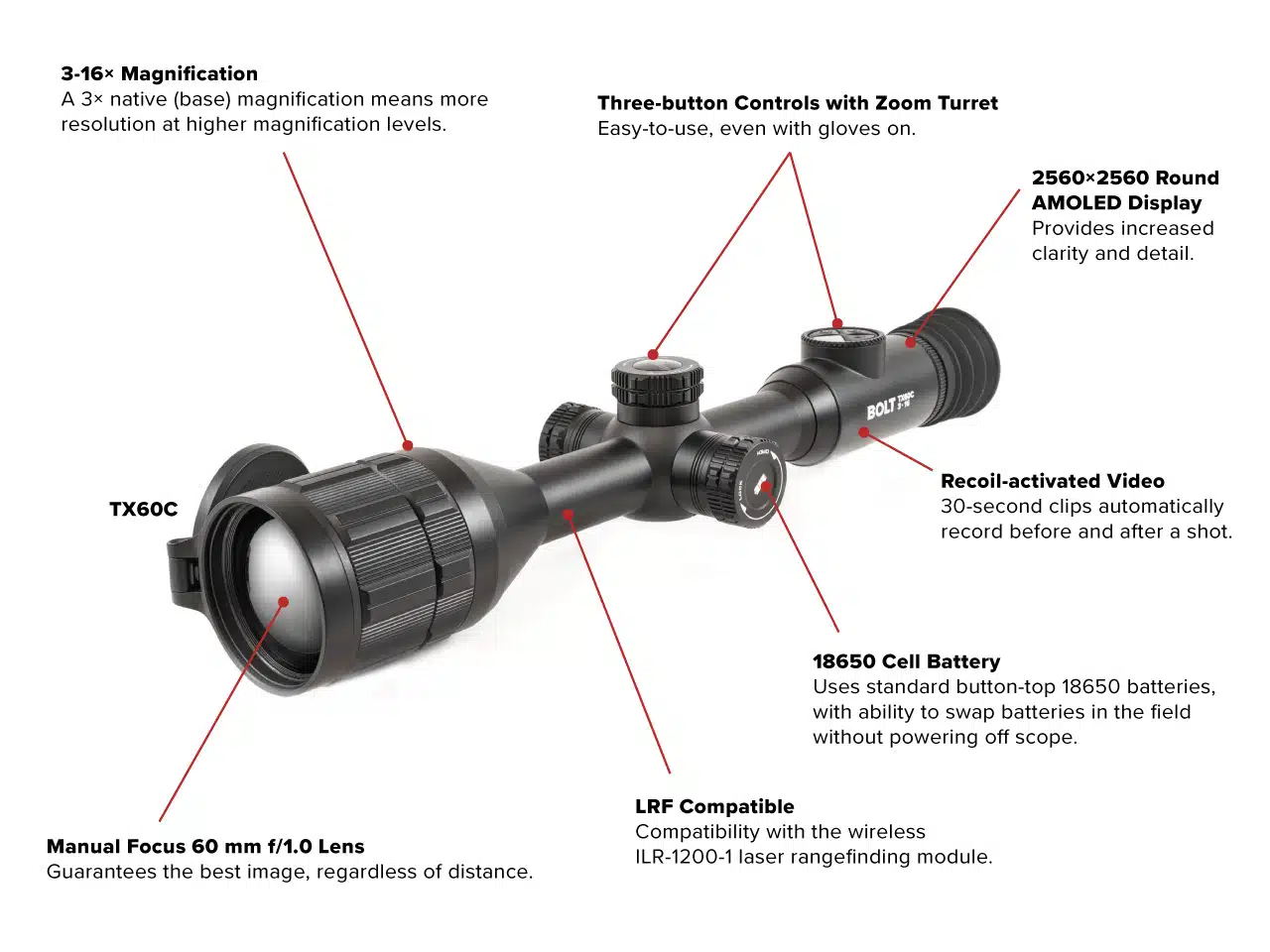

The InfiRay Outdoor BOLT TX60C provides hunters and shooters with a high-resolution InfiRay Micro II thermal sensor. With a native 3x magnification and up to 16x digital zoom, this optic is ideal for predator hunting and long-range shots. The f1.0 germanium objective lens and sensitivity rating of ≤18mK, along with the 1.03" round 2560x2560 AMOLED display, ensure outstanding detail and precision. The 30mm body design accommodates easy mounting with the included one-piece cantilever mount or standard scope rings.

SPECS
Sensor

• Resolution: 1024x1024
• Pixel Size: 12μm
• Frame Rate: 50hz
• Sensor Sensitivity: ≤18mK
• Image Processing: MATRIX III
• Core: InfiRay Micro II 1024

Optics

• Objective Lens: 60mm f/1.0
• Magnification: 3.0x
• Digital Zoom: 16x, Stepped
• Field of View: 11.7°x 11.7°
• Detection Range: 2700 yards
• Display Type: 1.03" Large-format AMOLED
• Display Resolution: 2560x2560
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Reticle Types: 7 (1 Dynamic, 5 Static, 1 DIY)
• Mounting System: 30mm One-Piece Scopt Mount or 30mm Rings
• P.I.P.: Yes
• Rangefinder: Stadiametric, Bluetooth ILR-1200-1 LRF (Optional/Non Included)
• Eye Relief: 50mm
• Diopter Range: -5 to +3.5

Electronics

• Onboard Recording: Video, Recoil-Activated Video, Image
• Onboard Storage: 128 GB
• Wireless Connectivity: Video and Image via App
• Data/Power Connector: USB-C
• Power Supply: USB-C External, Built-In Battery Pack (8+ Hours), 18650 Battery (3.5+ Hours)
• Start Up Time: <10 Seconds, Instant from Standby

Physical

• Dimensions/Size: 15.12" x 4.09" x 3.03"
• Weight: 35.27 oz

Features

• 12 μm iRay Micro II thermal sensor
• ≤18 mK sensitivity
• 1.03-inch large-format amoled display with ultra-high 2560x2560 resolution
• High frame frequency (50Hz)
• T-6061 aluminum housing
• 2700-yard detection range
• Dual power supply solution for extended operation
• Compatible with ILR-1200-1 Bluetooth Laser Rangefinder Module (optional/not included)
• Four ballistics profiles and a user-defined, multi-variable ballistics calculator
• 16.0x stepped digital zoom
• Multiple zero profiles and ranges
• Traditional 30mm diameter housing design
• Built-in 128 GB storage to support image capture and video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in digital compass and gravity sensor
• Multiple reticle types and color options
• Ultra-Clear mode for advanced image detail
• Picture in Picture (PIP)
• Defective pixel correction
• Extended eye relief
• Cold and warm image hue options
• User-friendly interface
