UTG ACCU-SYNC QR Cantilever Mount - 40 MOA - Picatinny (34mm)
SKU -
400000060552
$109.97
Buy this product to earn loyalty points!
Need help? Email or call 0800 123 45
Shopping cart

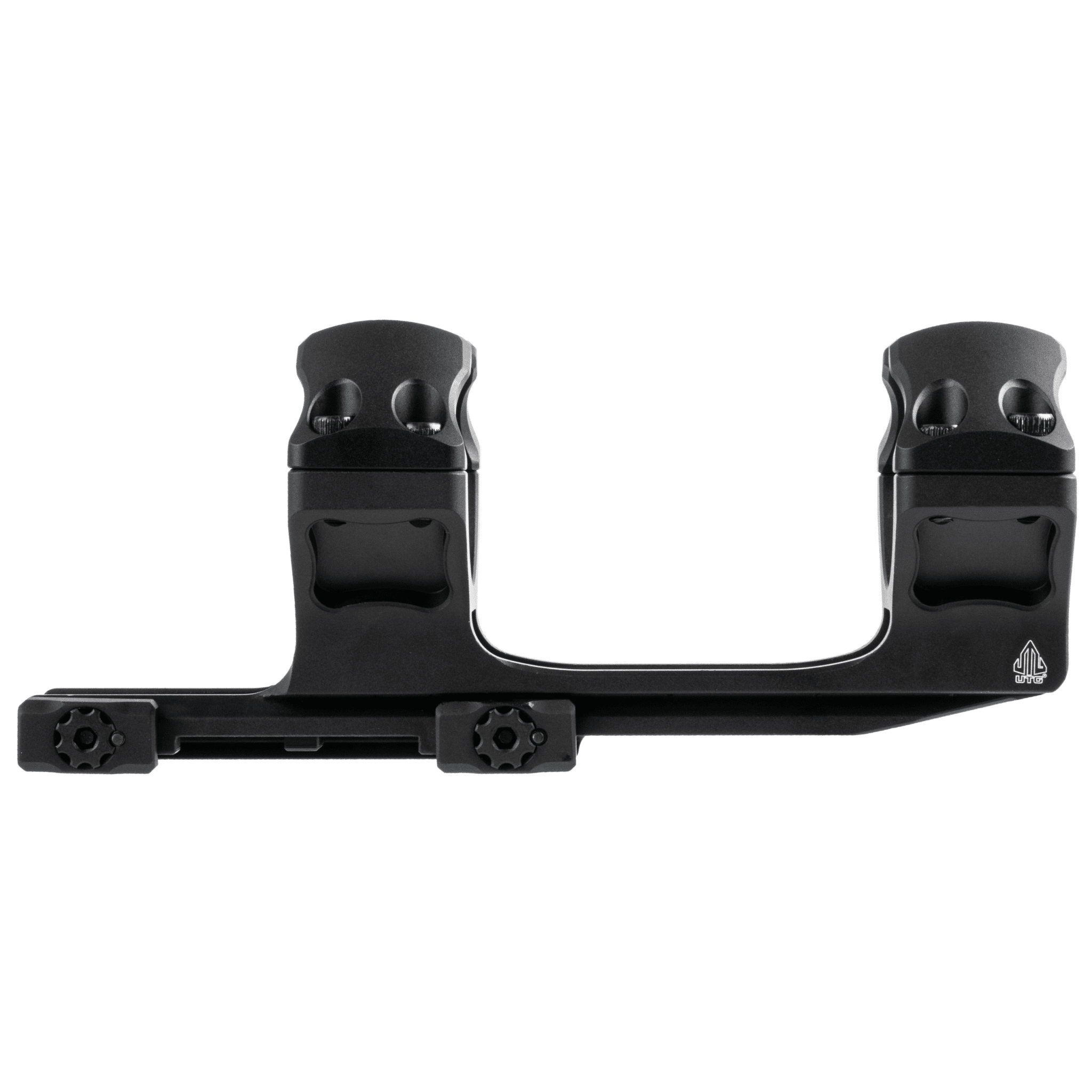

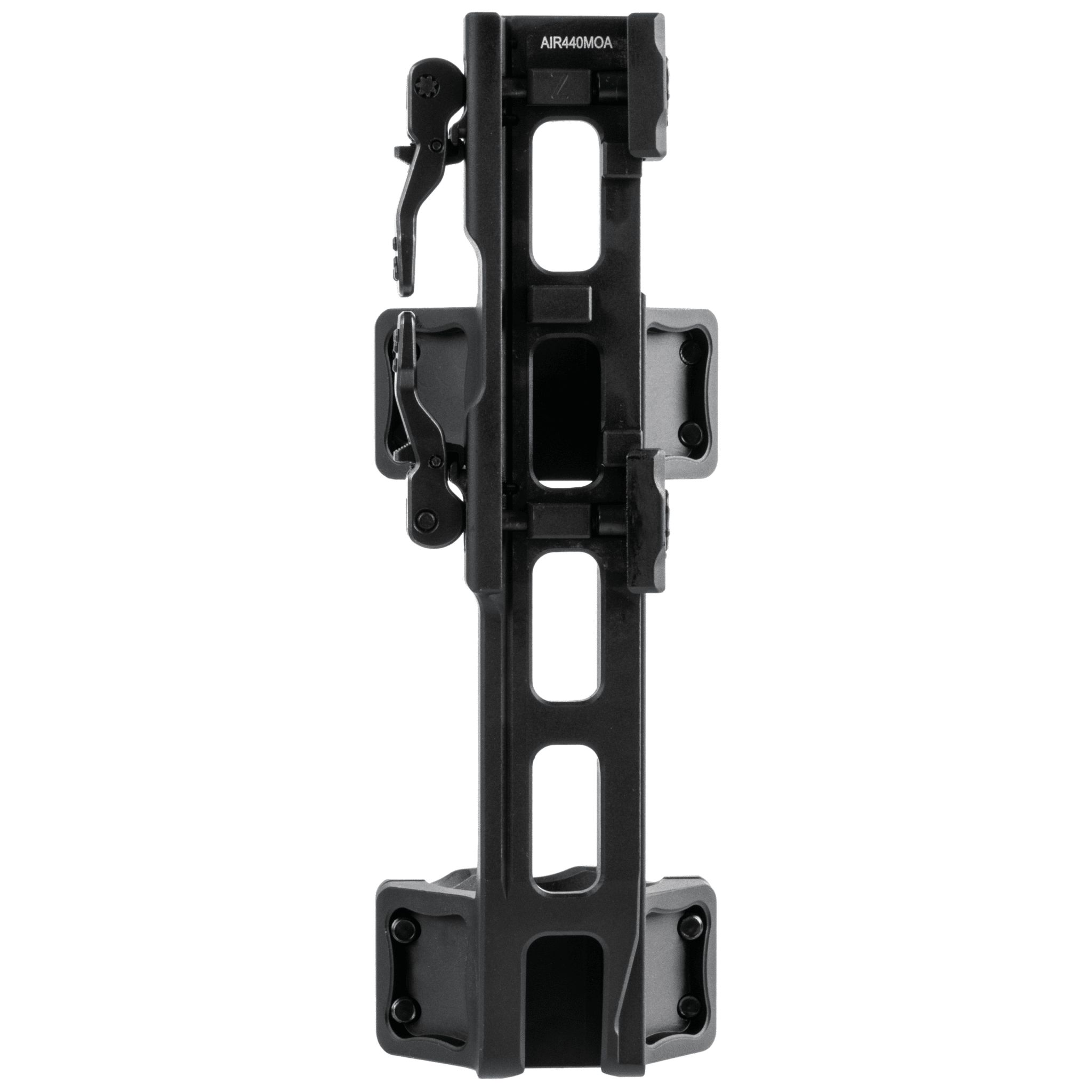

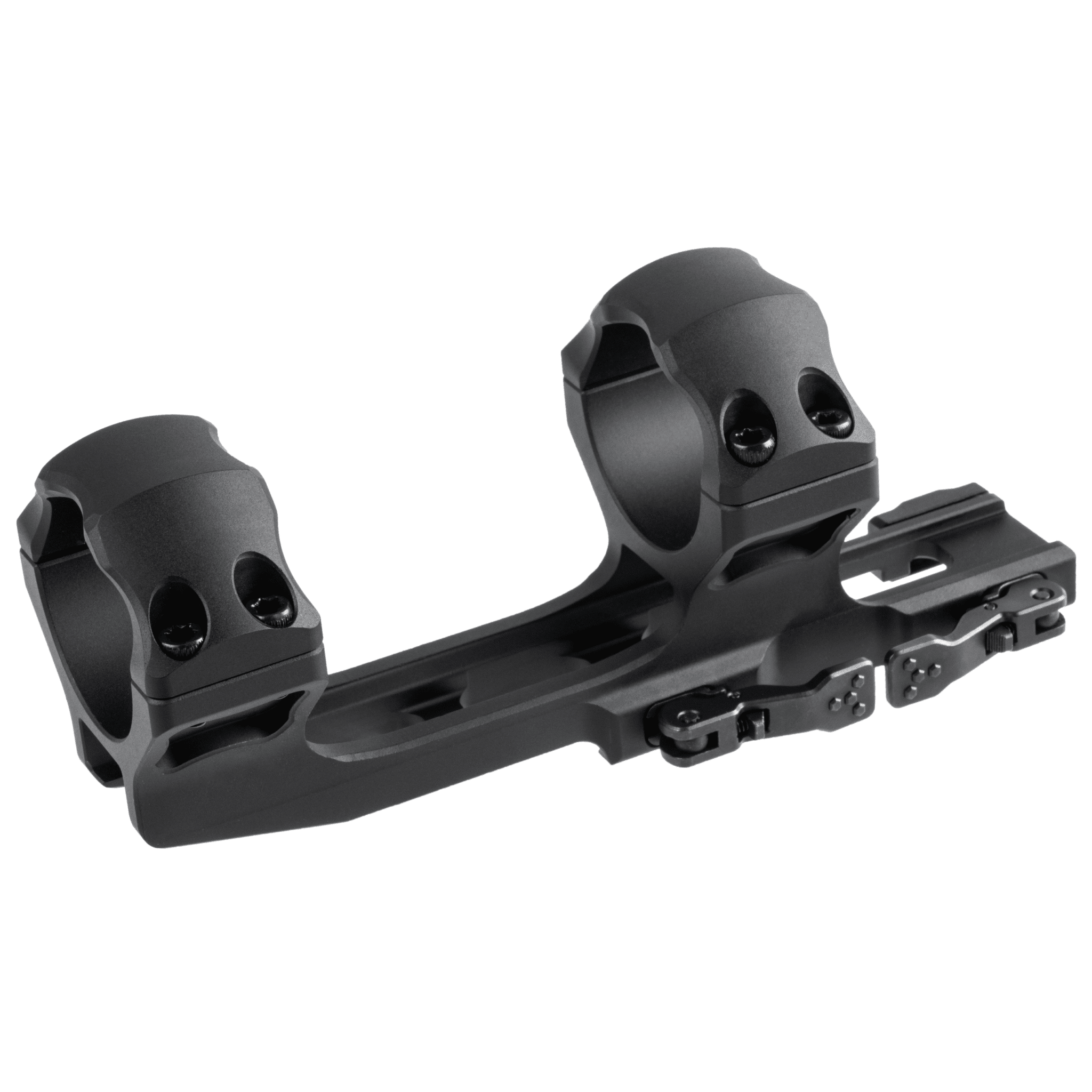

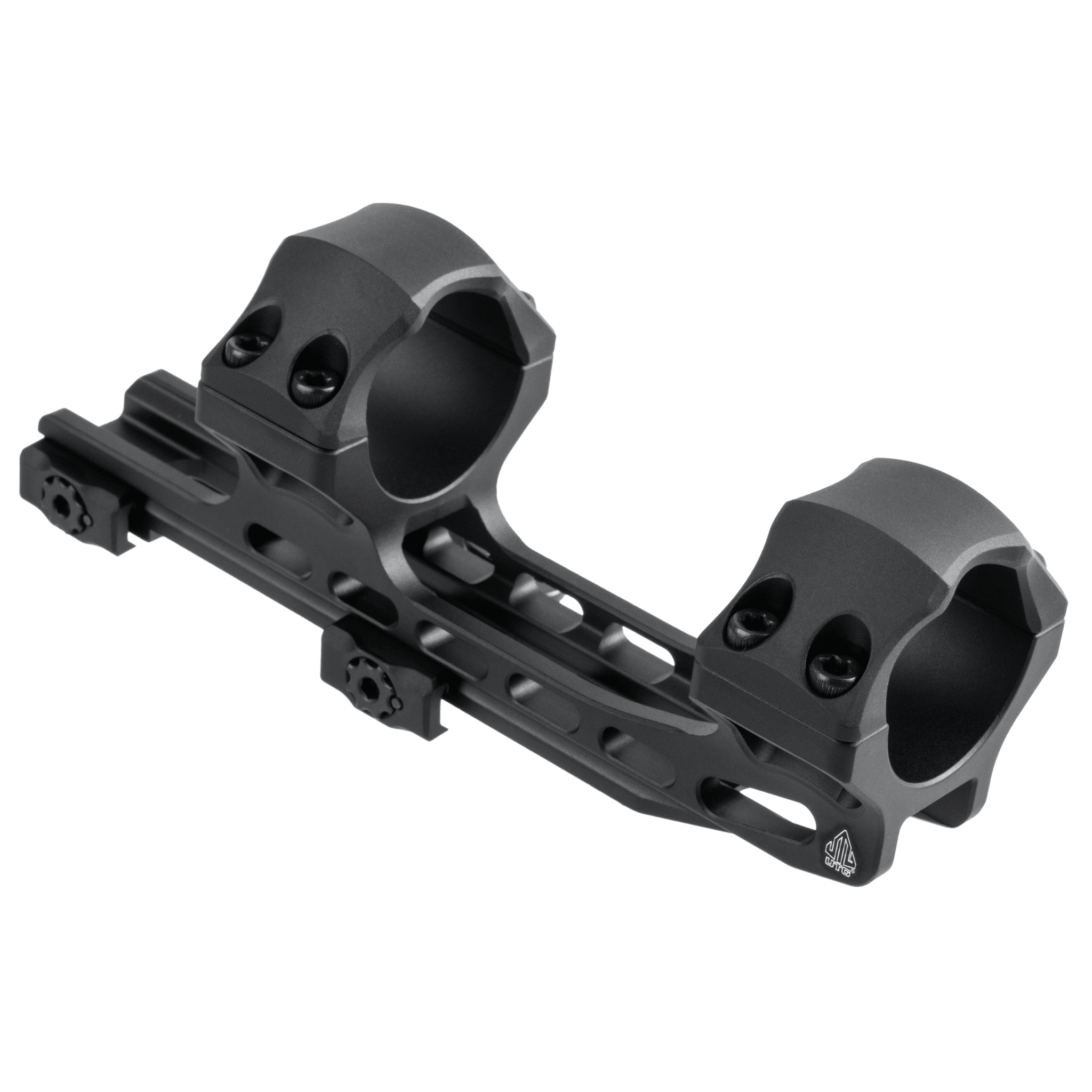

UTG ACCU-SYNC QR Cantilever Mount - 40 MOA - Picatinny (34mm)
UTG ACCU-SYNC QR Cantilever Mount - 40 MOA - Picatinny (34mm)
Product Details
- 0.67° Tilt, 40 MOA Compensation, 70 mm Offset, 60 mm Inner Ring Distance, 85 mm Outer Ring Distance, 80 mm Base Length, 25 mm Ring Width, Fits 34 mm Diameter Tube
- Quick Release (QR) Picatinny Mount Features Tool-free Tension Adjustment, Locking QR Levers, and Squared Recoil Stops for a Secure and Repeatable Zero
- Precision CNC Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodize
- 40 MOA Vertical Compensation Increases Access to Elevation Adjustment Range
- Snag-free Radiused Edges and Corners
- Lightening Cut for Reduced Weight
- Rated for .338 LAPUA Magnum
- NOTE: We recommend tightening the ring top screws with a torque value of 25 inch-lb.
Specifications:
| Warranty | Lifetime |
|---|---|
| Materials | 6061-T6 Aluminum, Steel |
| Color(s) | Black |
| Surface Finish | Anodized |
| Quick-detachable | Yes |
| Mount Type | Picatinny |
| Caliber Rating | .338 Lapua Magnum |
| Top Screw Torque Value | 25 in-lbs |
| Locking Mechanism | QR Lever |
Parts Included:
| # | IMAGE | DESCRIPTION | QUANTITY |
|---|---|---|---|
| 1 |  |
Allen Wrench 3mm | 1 |
| 2 |  |
T15 Torx Wrench | 1 |
| 3 |  |
M4 Socket Head T15 Torx Head Screw | 1 |
Dimensions:
| Base Length | 3.15 in / 80 mm |
|---|---|
| Inner Dia. | 34 mm |
| MOA Compensation | 40 |
| Offset Distance | 2.76 in / 70 mm |
| Ring Distance (Inner) | 2.36 in / 60 mm |
| Ring Distance (Outer) | 3.35 in / 85 mm |
| Ring Width | 0.98 in / 25 mm |
| Tilted Degree | 0.67° |
| Weight | 6.0 oz / 170 g |
